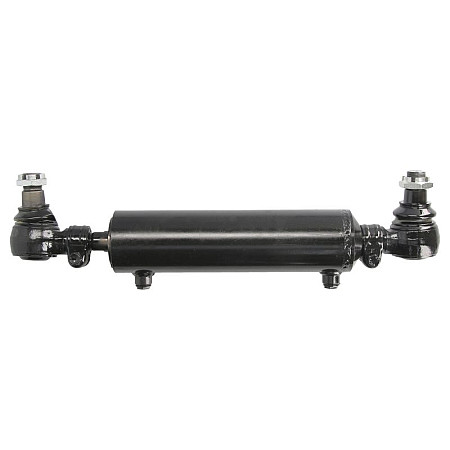

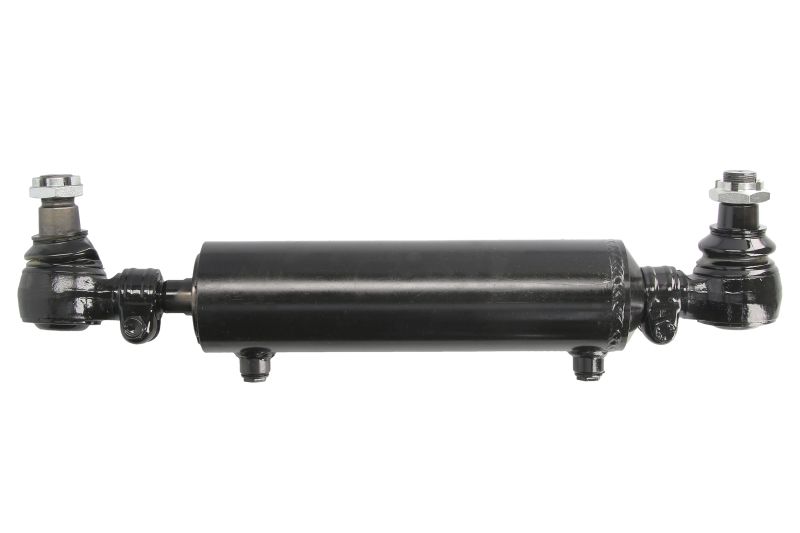

Cilindru receptor, servodirectie MAN TGX CZM CZM110548

Cilindru receptor, servodirectie MAN TGX CZM CZM110548
Steering system damper (593mm-838mm) MAN TGA, TGS, TGX 02.04-
Diametru 36mm
Lungime maxima 838mm
Lungime minima 593mm
Greutate 22,50 kg
Filet exterior [mm]
Deschidere cheie
Dimensiune conus [mm] 30.0
diametru tija amortizor telescop (mm) 36.0
Lungime min. [mm] 593.0
Lungime max. [mm] 838.0
Cursa [mm] 250.0
PIESA POTRIVESTE LA: 35.360 D 2066 LF 38, D 2066 LF 42, D 2066 LF 67, D 2066 LF 27 2008/06 - n/a 265 360 10518
35.500 D 2676 LF 51 2016/09 - n/a 368 500 12419
35.580 D 3876 LF07 2016/09 - n/a 427 581 15256
41.680 D 2868 LF06, D 2868 LF03, D 2868 LF05 2007/10 - n/a 500 680 16200
41.640 D 3876 LF03 2014/09 - n/a 471 640 15256
41.540 D 2676 LF 06, D 2676 LF 13 2008/06 - n/a 397 540 12412
35.480 D 2676 LF 07, D 2676 LF 05, D 2676 LF 25, D 2676 LF 14 2008/06 - n/a 353 480 12412
27.440 D 2676 LF 28 2012/10 - n/a 324 440 12412
35.640 D 3876 LF09 2016/09 - n/a 471 640 15256
35.400 D 2066 LF 41, D 2066 LF 61, D 2066 LF 37, D 2066 LF 26 2008/06 - n/a 294 400 10518
35.420 D 2676 LF 53 2016/09 - n/a 309 420 12419
41.580 D 3876 LF07 2016/09 - n/a 427 581 15256
35.540 D 2676 LF 06, D 2676 LF 13 2008/06 - n/a 397 540 12412
35.440 D 2066 LF 25, D 2066 LF 36, D 2066 LF 40 2008/06 - n/a 324 440 10518
35.460 D 2676 LF 52 2016/09 - n/a 338 460 12419
35.540 D 3876 LF08 2016/09 - n/a 397 540 15256
35.440 D 2676 LF 26 2008/06 - n/a 324 440 12412
Echivalente : K S00 003 283
